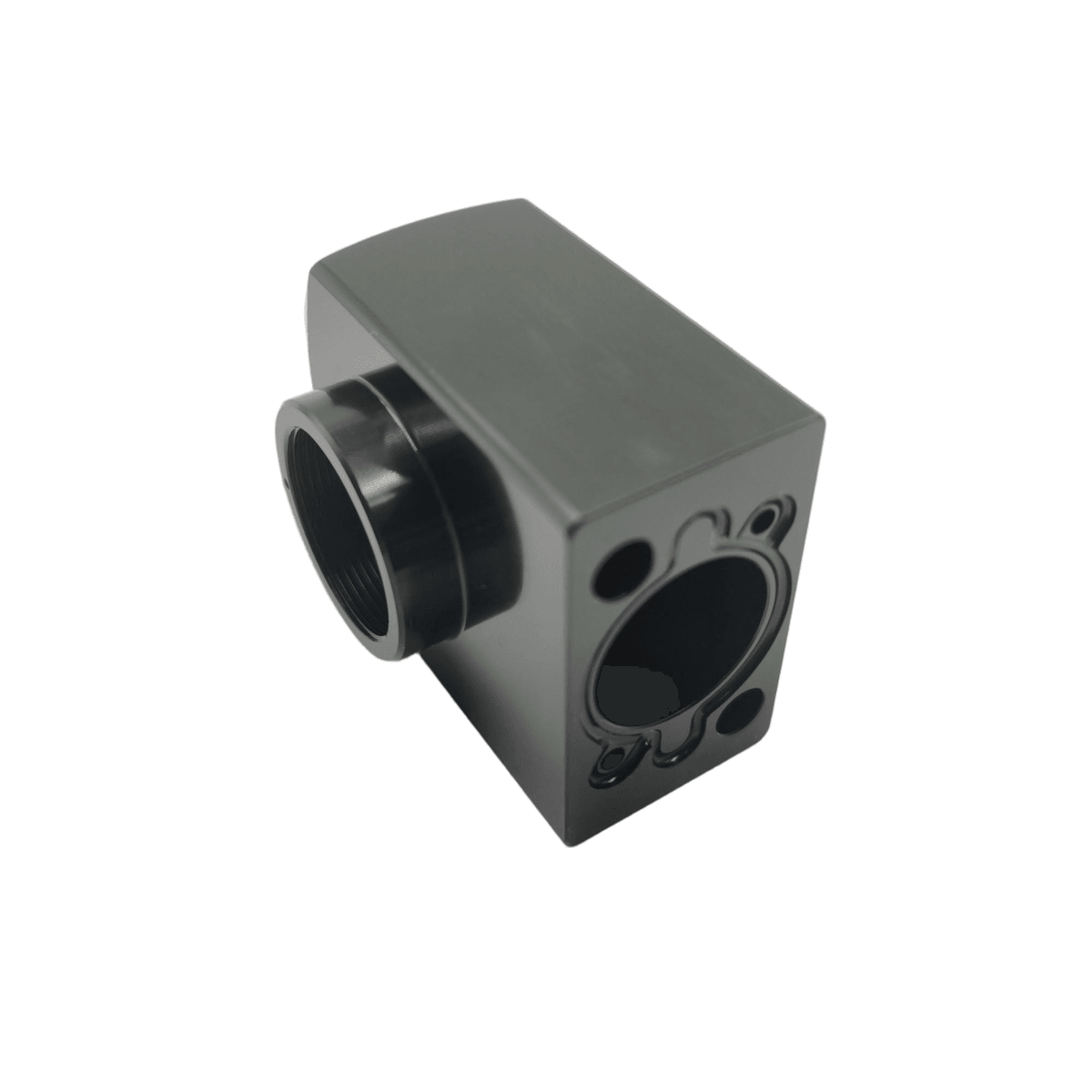

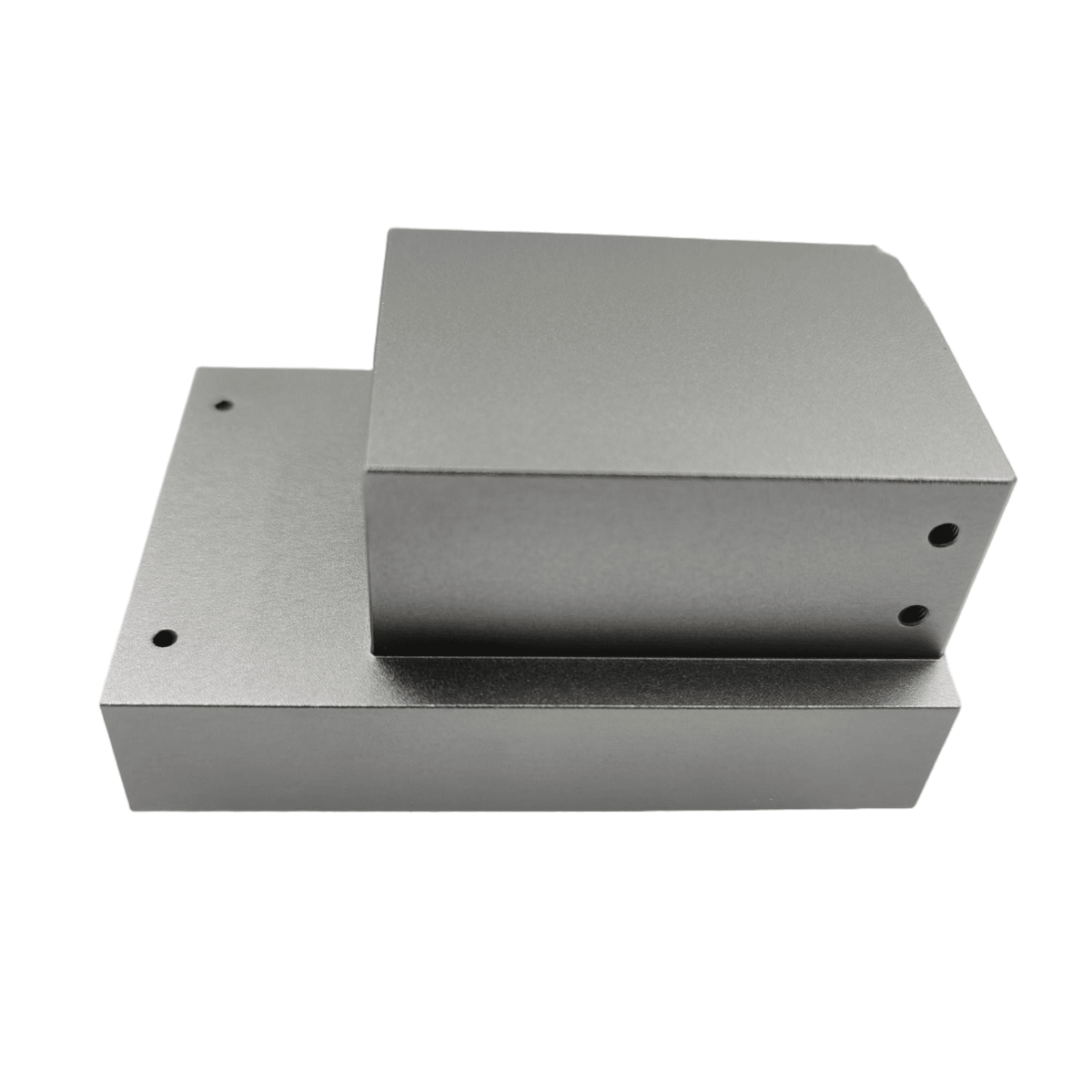

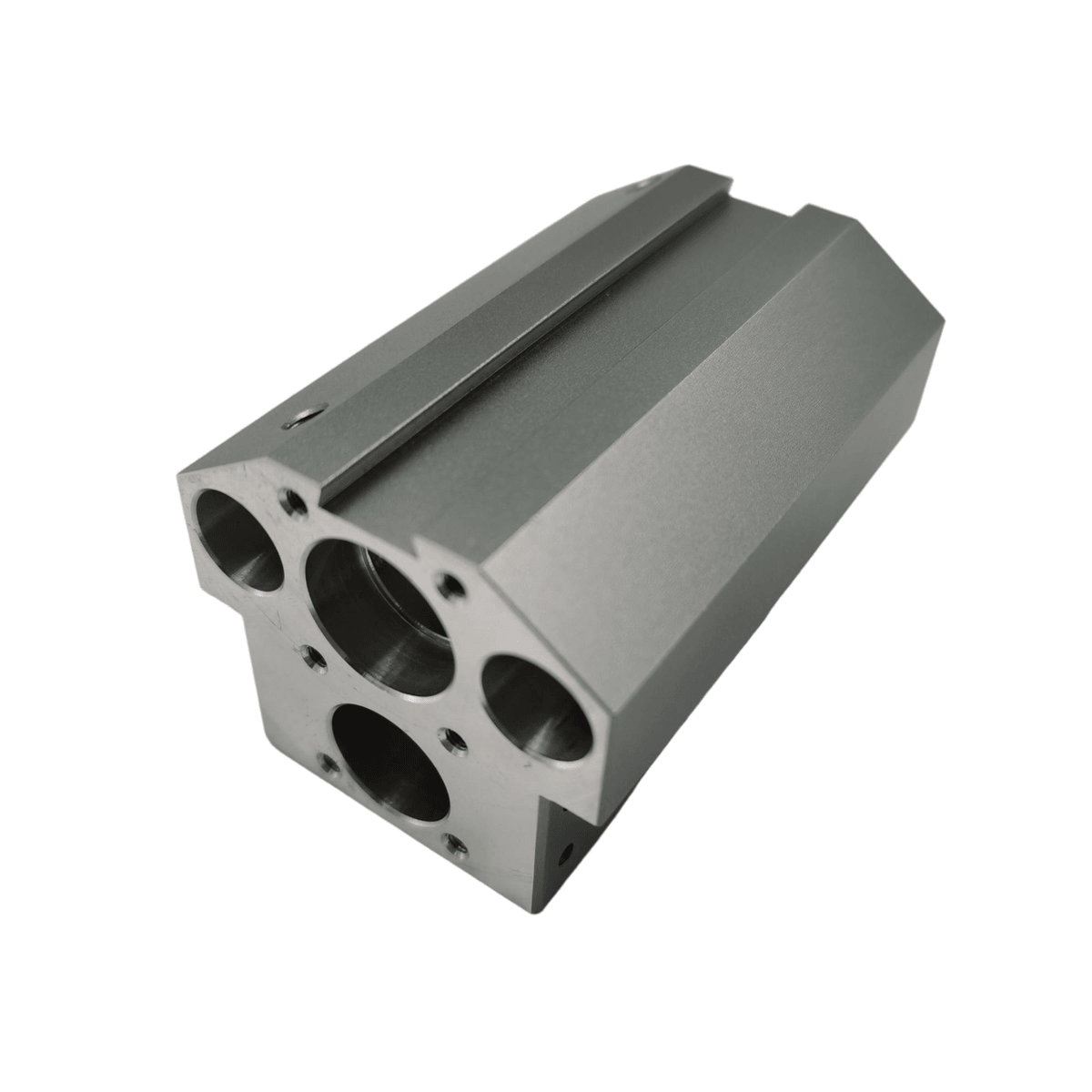

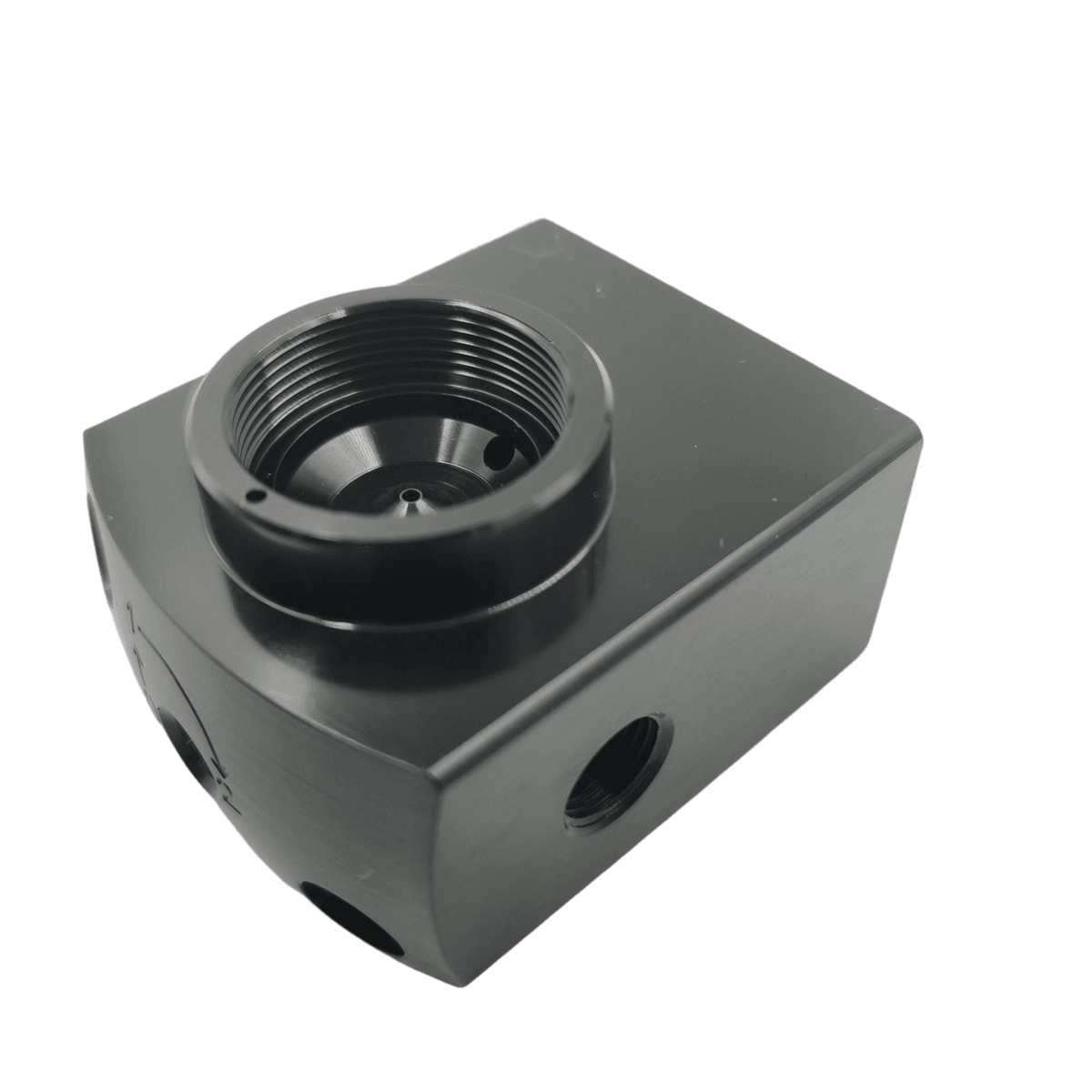

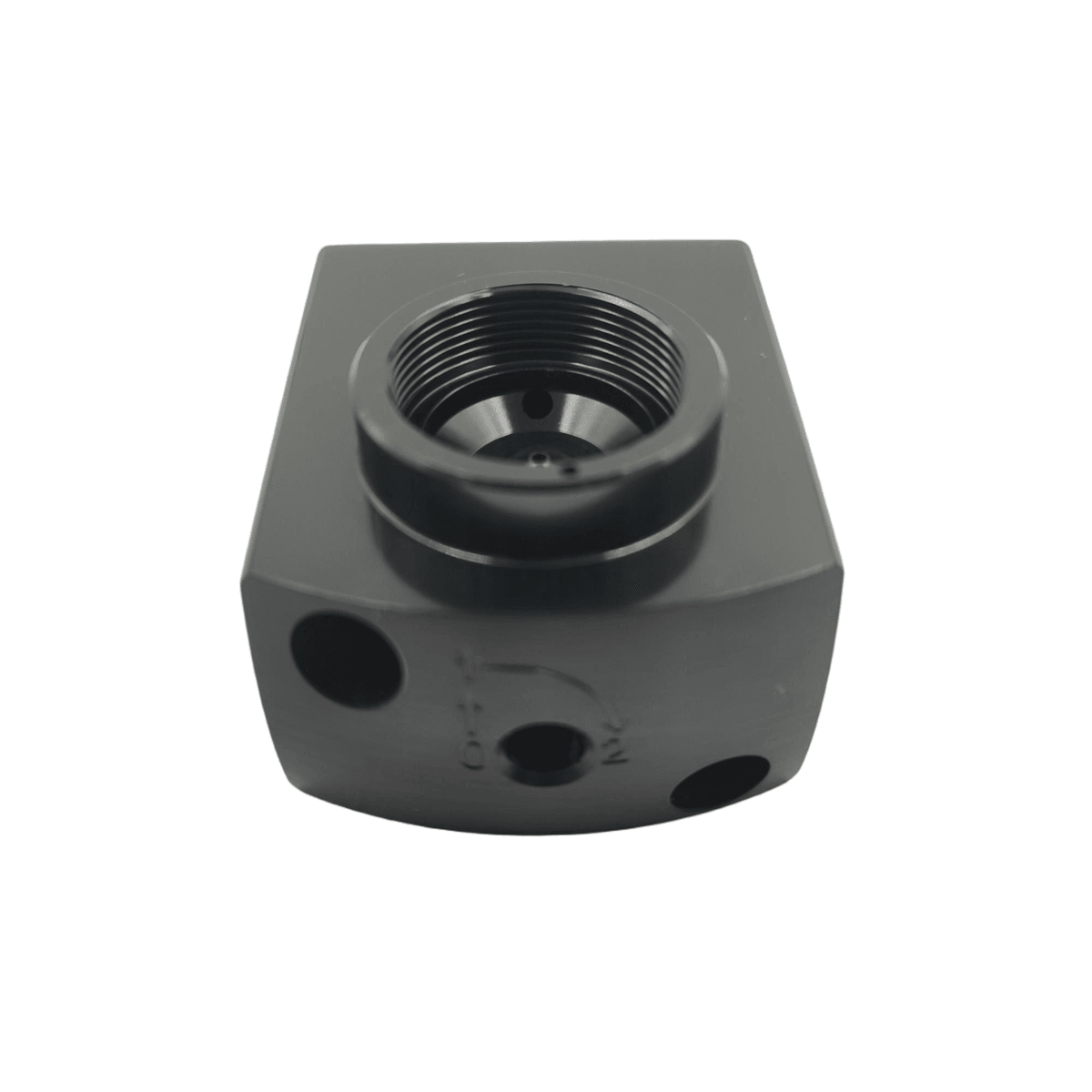

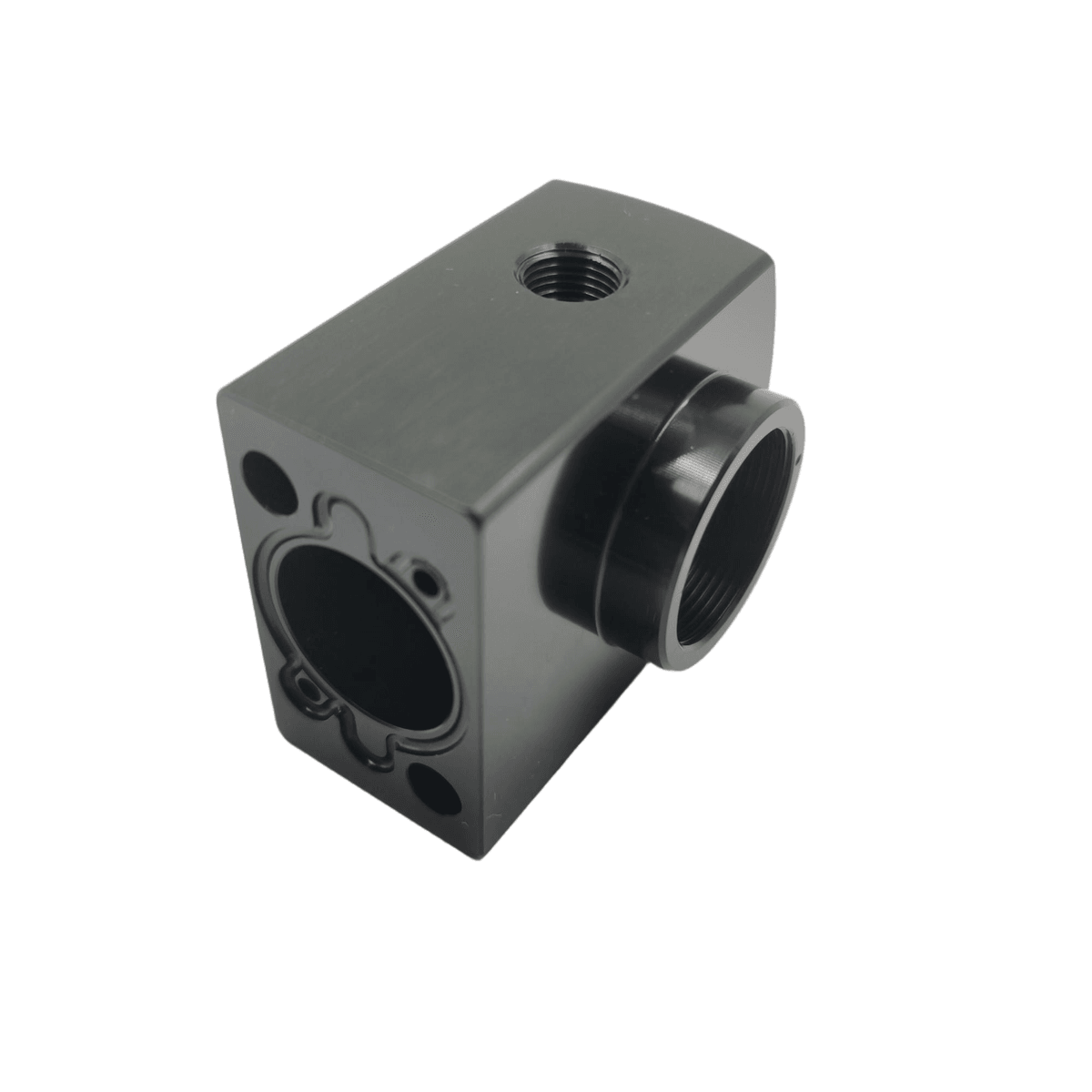

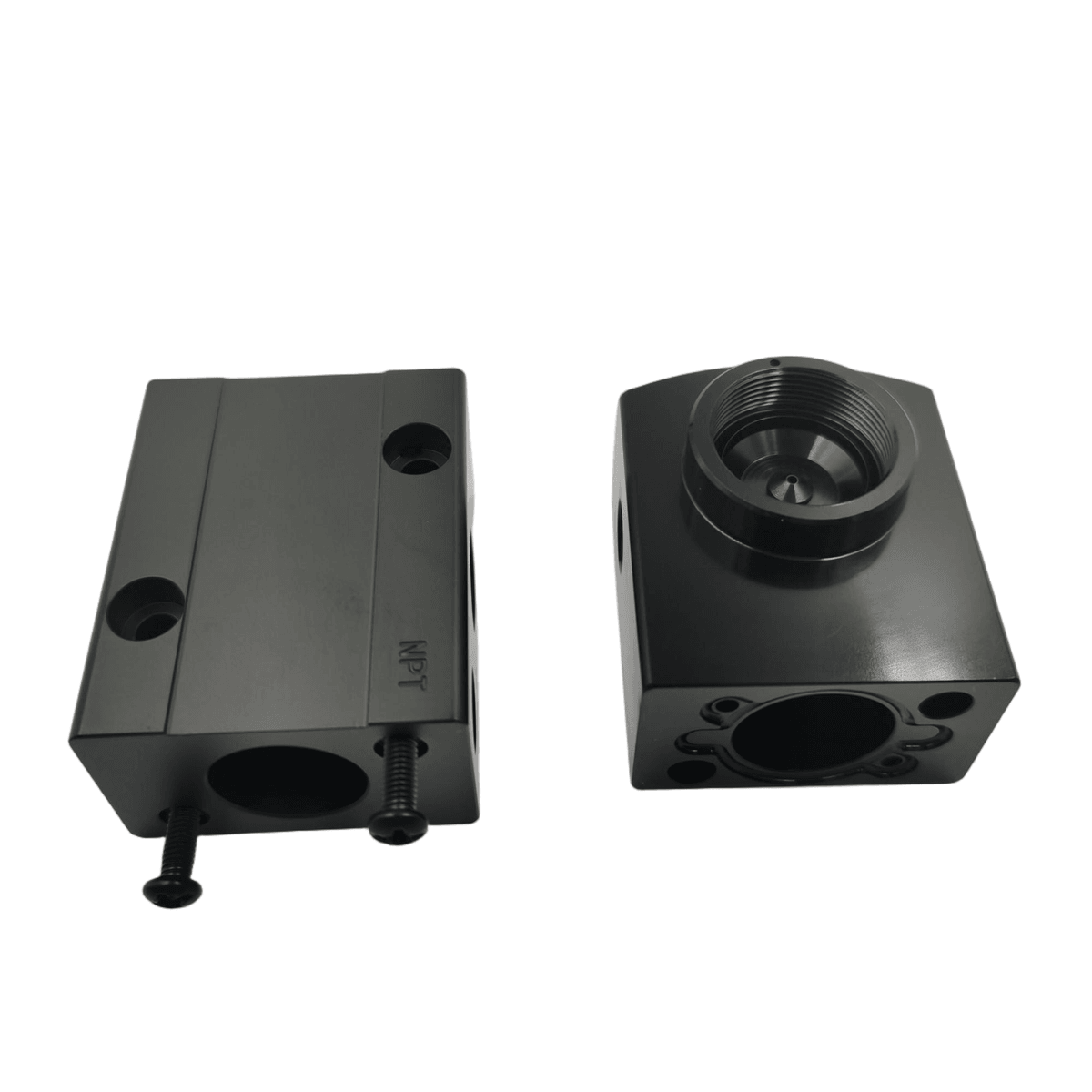

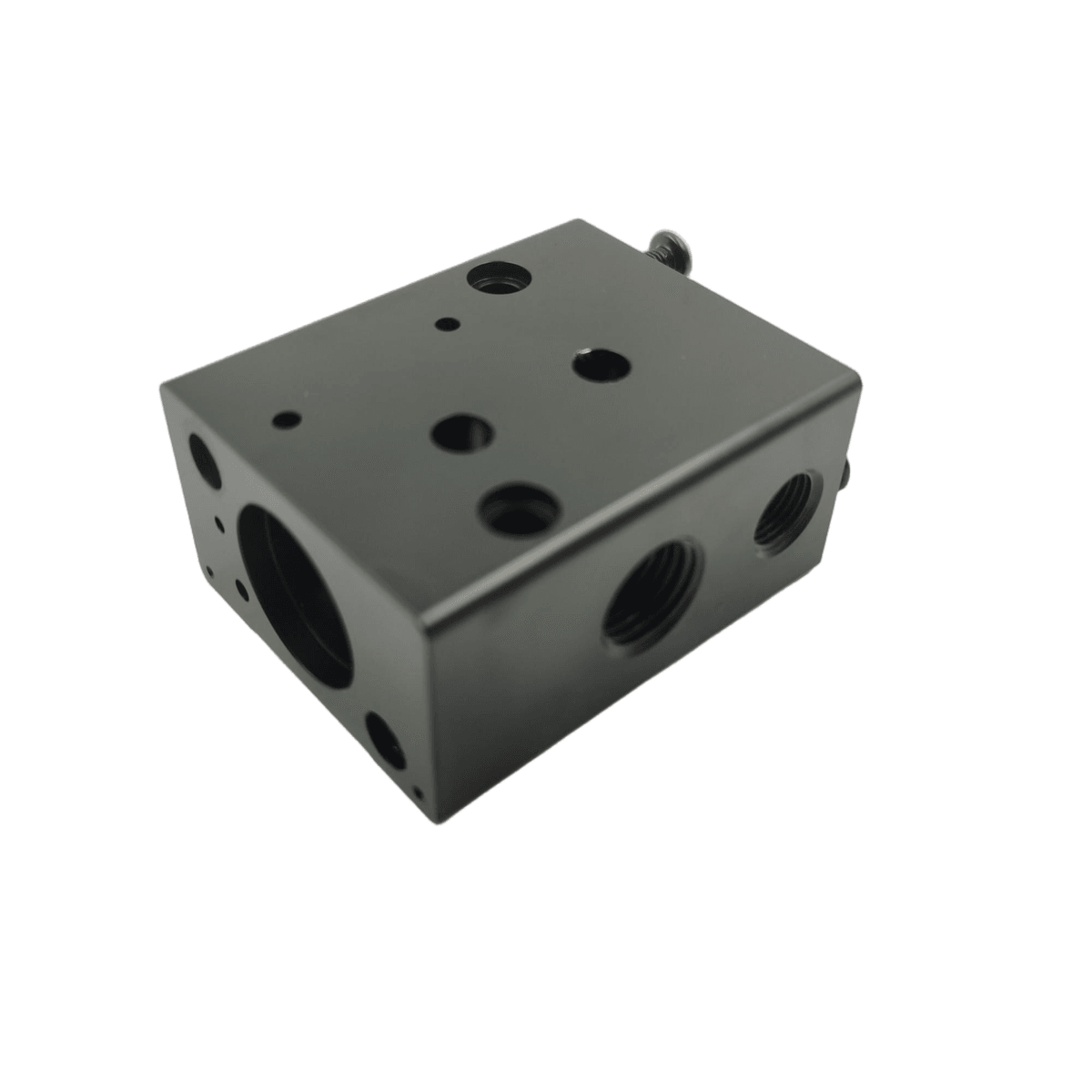

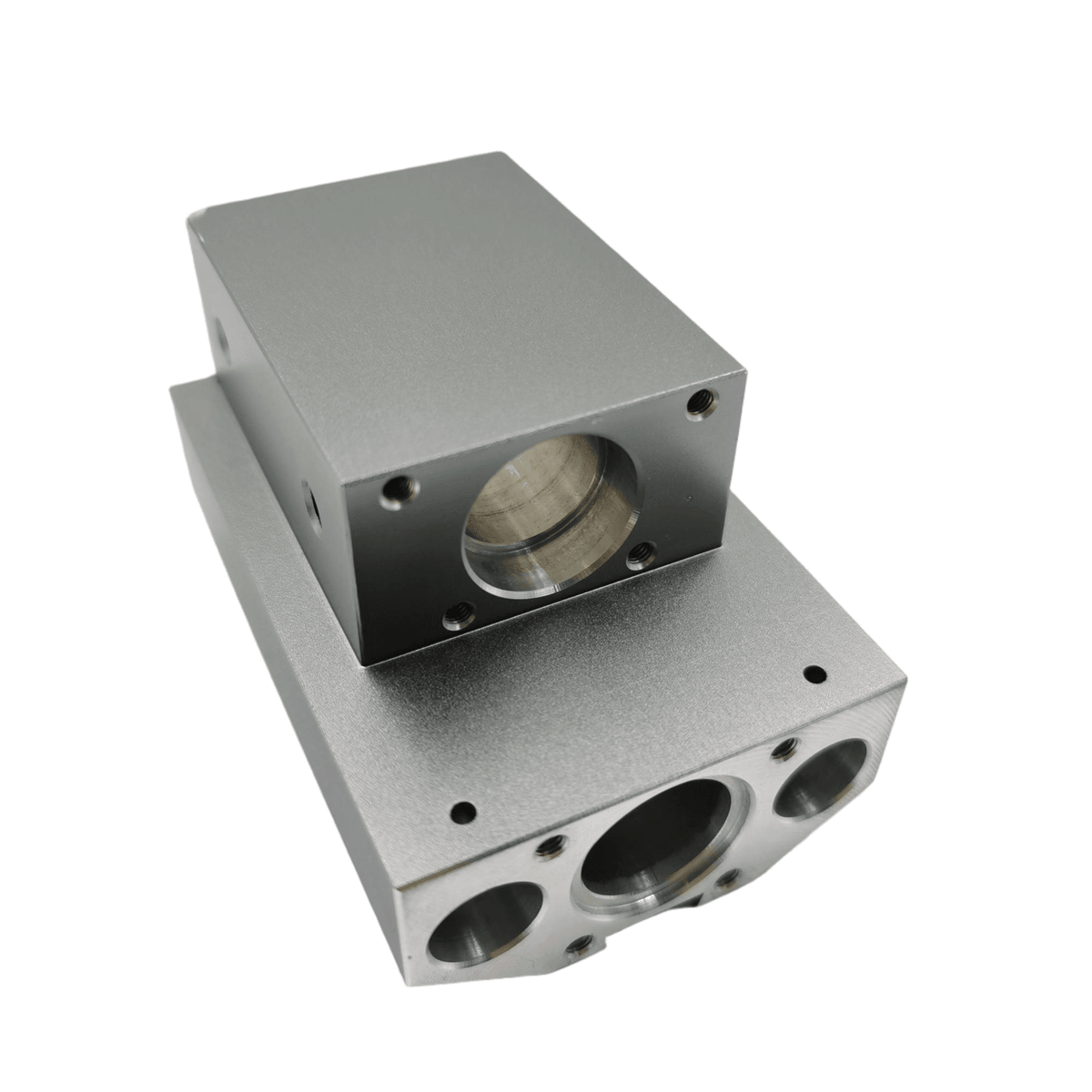

Precision Hardware for Fluid Equipment & Sensors-CNC Machining Parts for Fluid Control
Precision Hardware for Fluid Equipment & Sensors
Core Advantages
Zero-leakage Sealing: The sealing surface of fluid components such as valve bodies and connectors has a processing precision of Ra ≤ 0.4μm. When used with O-rings, the pressure test reaches 20MPa without leakage (conventional industrial grade is 10MPa).
Sensor Signal Fidelity: The parallelism of the mounting datum plane of the sensor housing is ≤ 0.003mm, ensuring the position accuracy of the sensor probe and the measured medium, and reducing the signal error by more than 5%.
Corrosion Resistance Enhancement: Adopts PVD vacuum coating (such as chromium nitride) or electroless nickel plating. The salt spray test reaches 1000 hours (conventional hardware is 500 hours), suitable for acid-base and high-temperature fluid environments.
Technical Specifications
Processing Technology: Multi-station CNC composite processing (completing turning, milling, and drilling in one clamping) to reduce clamping errors.
Inspection Equipment: Air tightness detector (precision 0.01Pa) and coordinate measuring machine (for detecting the accuracy of the mounting datum plane).
Core Advantages
Zero-leakage Sealing: The sealing surface of fluid components such as valve bodies and connectors has a processing precision of Ra ≤ 0.4μm. When used with O-rings, the pressure test reaches 20MPa without leakage (conventional industrial grade is 10MPa).
Sensor Signal Fidelity: The parallelism of the mounting datum plane of the sensor housing is ≤ 0.003mm, ensuring the position accuracy of the sensor probe and the measured medium, and reducing the signal error by more than 5%.
Corrosion Resistance Enhancement: Adopts PVD vacuum coating (such as chromium nitride) or electroless nickel plating. The salt spray test reaches 1000 hours (conventional hardware is 500 hours), suitable for acid-base and high-temperature fluid environments.
Technical Specifications
Processing Technology: Multi-station CNC composite processing (completing turning, milling, and drilling in one clamping) to reduce clamping errors.
Inspection Equipment: Air tightness detector (precision 0.01Pa) and coordinate measuring machine (for detecting the accuracy of the mounting datum plane).
More Details
Product Advantage 1: Our CNC-machined precision hardware parts for fluid equipment and sensors have a tolerance of ±0.01mm, ensuring the sealing performance of fluid equipment and the measurement accuracy of sensors.
Product Advantage 2: Made of corrosion-resistant materials such as stainless steel and brass, these parts can withstand various corrosive media and ensure long-term stable operation.
Product Advantage 3: The surface finish is high, with a surface roughness of Ra0.8μm, which can reduce fluid resistance and improve the efficiency of fluid equipment.
Product Advantage 4: We have rich experience in machining complex fluid components and sensor parts, such as valves, connectors, and sensor housings, which can meet the diverse needs of different industries.
Product Advantage 5: Customized services are available. We can design and manufacture according to customer-specific requirements for fluid flow rate, pressure, and sensor measurement range.
Technical Explanation 1: The machining process adopts multi-axis CNC machining technology, which can realize the integrated machining of complex fluid channels and sensor cavities, improving machining accuracy and efficiency.
Technical Explanation 2: We have a professional team of engineers who can provide technical support for the selection and application of fluid equipment and sensor parts.
Technical Explanation 3: The production process complies with industry standards such as ASME and ISO, ensuring the quality and reliability of products.
| No. | Description | Keywords |
| 1 | Stainless Steel CNC Machined Valve Bodies for High-Pressure Fluid Systems,With ±0.01mm sealing surfaces and 316L stainless steel construction, our valves withstand 5000psi pressure, ideal for oil and gas applications. | CNC valve bodies, high-pressure fluid parts, stainless steel sensors. |
| 2 | CNC Machined Sensor Housings for Corrosive Media Detection, Hastelloy C-276 housings with ±0.02mm port alignment, compatible with acids and solvents, ensuring 10-year durability. | CNC sensor housings, corrosive media sensors, Hastelloy fluid components. |
| 3 | Precision CNC Machined Flow Meter Components for Accurate Measurement, Aluminum alloy rotors and stainless steel casings with ±0.1L/min accuracy, perfect for water and chemical flow control. | CNC flow meters, accurate fluid measurement, precision sensor parts. |
| 4 | CNC Machined Pump Impellers for Enhanced Fluid Transfer, Bronze and plastic impellers with CNC-machined vanes, increasing pump efficiency by 25%, ideal for HVAC and industrial systems. | CNC pump impellers, fluid transfer components, high-efficiency pump parts. |
| 5 | Custom CNC Machined Manifolds for Multi-Channel Fluid Distribution, Aluminum alloy manifolds with ±0.05mm channel diameter, enabling uniform fluid distribution in pharmaceutical manufacturing. | CNC fluid manifolds, multi-channel sensors, custom distribution parts. |
| 6 | High-Precision CNC Machined Pressure Sensor Diaphragms for Sensitive Detection, Stainless steel diaphragms with ±0.005mm thickness, detecting pressures as low as 0.1psi, perfect for aerospace and automotive applications. | CNC pressure diaphragms, sensitive fluid sensors, precision detection parts. |
| 7 | CNC Machined Fittings for Leak-Proof Fluid Connections, Brass and stainless steel fittings with NPT and metric threads, ensuring 100% leak resistance in hydraulic systems. | CNC fluid fittings, leak-proof connectors, high-pressure sensor parts. |
| 8 | Stainless Steel CNC Machined Filter Housings for Contaminant Removal, 304 stainless steel housings with CNC-machined O-ring grooves, filtering particles as small as 5μm, ideal for drinking water and industrial fluids. | CNC filter housings, contaminant removal sensors, precision filtration components. |
| 9 | Precision CNC Machined Nozzles for Uniform Fluid Dispensing, Brass and plastic nozzles with ±0.01mm orifice diameter, enabling 0.1mL/s precision in spray coating and dispensing. | CNC fluid nozzles, uniform dispensing parts, precision sensor nozzles. |
| 10 | CNC Machined Hydraulic Cylinder Components for Heavy-Duty Applications, Steel barrels and pistons with ±0.02mm tolerance, supporting 100-ton loads in construction and manufacturing. | CNC hydraulic cylinders, heavy-duty fluid parts, high-load sensor components. |
| 11 | Custom CNC Machined Air Valve Components for Pneumatic Systems, Aluminum alloy valves and actuators with ±0.05s response time, improving automation cycle efficiency by 20%. | CNC air valves, pneumatic sensor parts, fast-response fluid components. |
| 12 | High-Precision CNC Machined Turbine Flow Sensor Parts for Liquid Monitoring, Polycarbonate and stainless steel turbines with ±1% flow accuracy, ideal for fuel and chemical monitoring. | CNC turbine sensors, liquid flow monitoring, precision fluid parts. |
| 13 | CNC Machined Diaphragm Seals for Pressure Sensor Protection, PTFE and stainless steel seals with ±0.01mm deflection, protecting sensors from corrosive fluids in food and beverage industries. | CNC diaphragm seals, sensor protection parts, corrosion-resistant fluid components. |
| 14 | Stainless Steel CNC Machined Fluid Mixer Components for Uniform Blending, Acetal and steel impellers with CNC-machined blades, achieving 95% mixing uniformity in pharmaceutical and chemical processes. | CNC fluid mixers, uniform blending sensors, precision mixing parts. |
| 15 | Precision CNC Machined Level Sensor Components for Tank Monitoring, Float balls and stainless steel rods with ±1mm level accuracy, suitable for water, oil, and chemical tanks. | CNC level sensors, tank monitoring parts, fluid level detection components. |
| 16 | CNC Machined Heat Exchanger Parts for Efficient Thermal Transfer, Aluminum alloy fins and copper tubes with CNC-machined channels, increasing heat transfer efficiency by 30%. | CNC heat exchangers, thermal transfer sensors, efficient fluid components. |
| 17 | Custom CNC Machined Fluid Sampling Components for Analysis, Stainless steel sampling valves and tubes with ±0.1mL sample volume accuracy, ideal for lab and industrial analysis. | CNC fluid samplers, analysis sensor parts, precise sampling components. |
| 18 | High-Precision CNC Machined Viscosity Sensor Parts for Fluid Characterization ,alloy probes with ±0.01Pas accuracy, measuring viscosity in paints, oils, and polymers. | CNC viscosity sensors, fluid characterization parts, precision viscosity components. |
| 19 | CNC Machined Spray Nozzles for Agricultural and Industrial Applications, Plastic and stainless steel nozzles with CNC-machined spray patterns, covering 360 degree areas with uniform droplet size. | CNC spray nozzles, agricultural fluid parts, industrial sensor nozzles. |
| 20 | Stainless Steel CNC Machined Fluid Pressure Relief Valves for Safety, Brass and steel valves with ±0.5psi relief accuracy, protecting systems from overpressure in plumbing and industrial applications. | CNC relief valves, fluid safety parts, pressure sensor components. |
