Precision CNC Hardware for Optical Lenses devices
Precision CNC Hardware for Optical Lenses devices
Core Advantages
Sub-micron Surface Precision: The surface roughness of the optical mating surface is Ra ≤ 0.4μm, avoiding light scattering/refraction distortion and ensuring imaging clarity.
Material Compatibility: Supports the processing of low-expansion coefficient materials such as aluminum alloy . When the temperature changes by ±20℃, the dimensional change is < 0.005mm, meeting the thermal stability requirements of high-precision optical systems.
Cleanliness Control: After processing, ultrasonic cleaning + vacuum drying is performed to eliminate dust and oil pollution to optical components.
Technical Specifications
Processing Equipment: Equipped with ultra-precision CNC grinding machine (spindle runout ≤ 0.5μm) and wire EDM (cutting accuracy ±0.002mm).
Inspection Methods: Laser interferometer for flatness detection and optical profiler for surface roughness analysis.
Core Advantages
Sub-micron Surface Precision: The surface roughness of the optical mating surface is Ra ≤ 0.4μm, avoiding light scattering/refraction distortion and ensuring imaging clarity.
Material Compatibility: Supports the processing of low-expansion coefficient materials such as aluminum alloy . When the temperature changes by ±20℃, the dimensional change is < 0.005mm, meeting the thermal stability requirements of high-precision optical systems.
Cleanliness Control: After processing, ultrasonic cleaning + vacuum drying is performed to eliminate dust and oil pollution to optical components.
Technical Specifications
Processing Equipment: Equipped with ultra-precision CNC grinding machine (spindle runout ≤ 0.5μm) and wire EDM (cutting accuracy ±0.002mm).
Inspection Methods: Laser interferometer for flatness detection and optical profiler for surface roughness analysis.
More Details
Precision CNC Hardware for Optical Lenses devices:

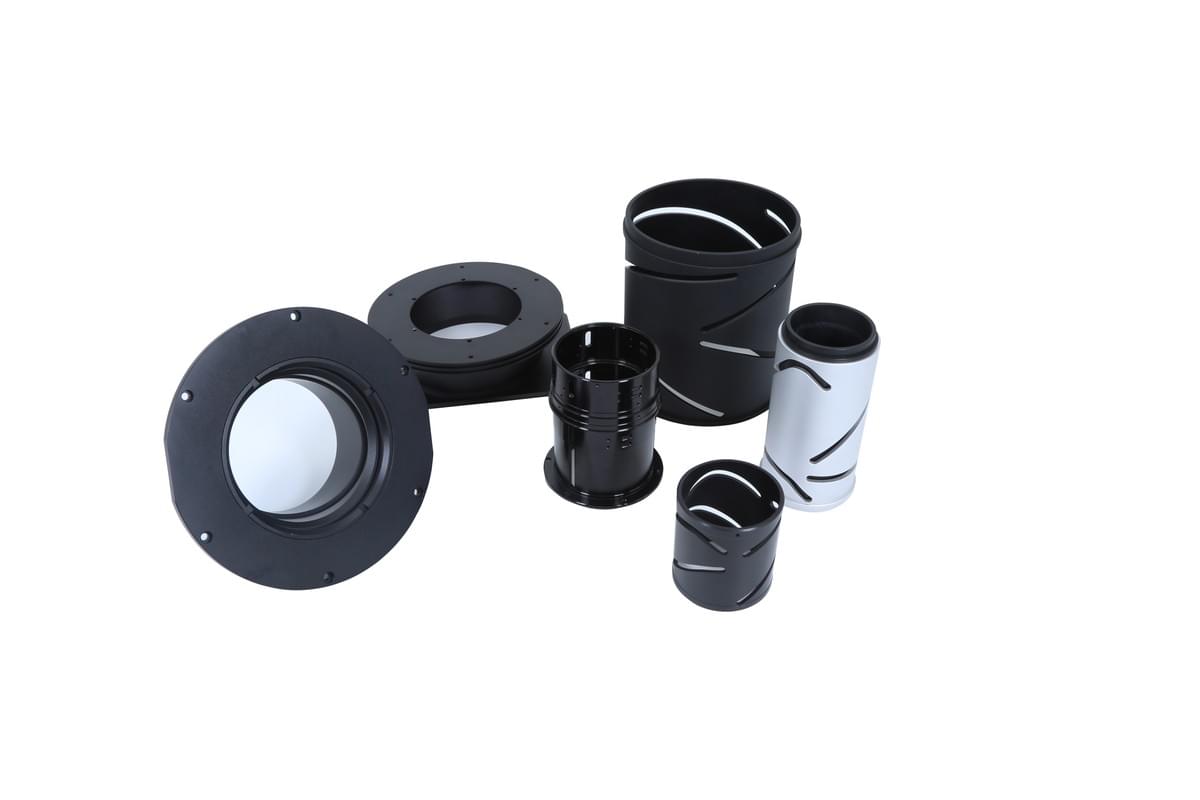

Product Advantage 4: We have rich experience in machining complex optical lens components, such as lens barrels and mounts, which can meet the diverse needs of different optical systems.
Product Advantage 5: The production process is strictly controlled, and the cleanliness of the production environment meets the requirements of the optical industry, avoiding contamination of optical components.

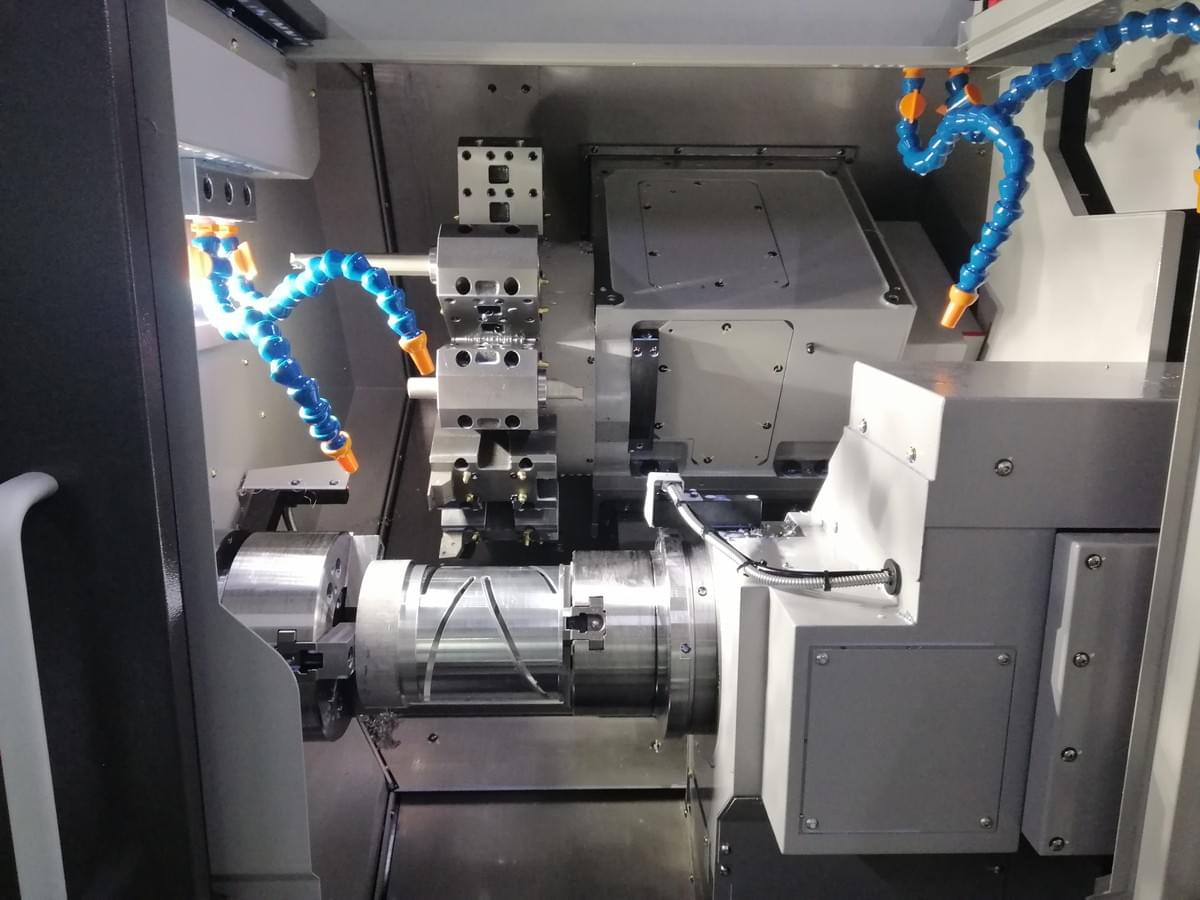

Technical Explanation 1: Ultra-precision CNC machining technology is adopted, with a spindle speed of up to 20,000rpm, which can achieve high-precision machining of micro-features.
Technical Explanation 2: The use of non-contact measurement technology, such as laser interferometry, can accurately measure the dimensional and geometric accuracy of parts without damaging the surface of the parts.
Technical Explanation 3: The machining process uses special cutting tools and cooling methods to avoid thermal deformation of parts and ensure machining accuracy.
Technical Explanation 4: We have a professional optical design and machining team, which can provide one-stop solutions from product design to machining.
Technical Explanation 5: The quality inspection adopts advanced optical testing equipment, such as optical comparators, to ensure that the parts meet the strict requirements of the optical
| No. | Description | Keywords |
| 1 | Ultra-Precision CNC Machined Lens Barrels for High-Resolution Cameras, With ±0.005mm tolerance and Ra0.4μm surface finish, our stainless steel lens barrels ensure zero light leakage, boosting image clarity. | CNC lens barrels, high-resolution camera parts, ultra-precision optical components. |
| 2 | CNC Machined Lens Mounts for Interchangeable Lenses,Made from aluminum alloy with anodized, these mounts feature 0.001mm alignment accuracy, ensuring perfect lens-to-sensor contact. | CNC lens mounts, interchangeable lens parts, brass optical components. |
| 3 | Precision CNC Machined Aperture Blades for Smooth Light Control, Our aluminum alloy blades with ±0.01mm thickness variation ensure uniform aperture adjustment, reducing vignetting by 20%. | CNC aperture blades, light control optical parts, titanium alloy lens components. |
| 4 | Custom CNC Machined Optical Filter Holders for Scientific Imaging, Aluminum alloy holders with micrometer adjustment slots, compatible with 25-100mm filters, ideal for microscopy and astronomy. | CNC filter holders, scientific imaging parts, custom optical components. |
| 5 | CNC Machined Focus Rings for Precision Lens Adjustment ,Featuring knurled surfaces and detented clicks, our focus rings offer 0.1mm per click precision, perfect for macro photography. | CNC focus rings, precision lens adjustment, macro photography parts. |
| 6 | High-Precision CNC Machined Mirror Mounts for Telescopes, Stainless steel mounts with ±0.002mm flatness, ensuring 99% reflectivity alignment. | CNC mirror mounts, telescope optical parts, high-precision astronomical components. |
| 7 | CNC Machined Prism Holders for Optical Instruments, Acetal copolymer holders with vibration-dampening features, ideal for spectrometers and laser systems. | CNC prism holders, optical instrument parts, vibration-dampening components. |
| 8 | Custom CNC Machined Optical Cell Components for Lasers Borosilicate glass cells, with CNC-machined metal enclosures, resistant to 10W laser power, perfect for medical and industrial lasers. | CNC optical cells, laser system parts, high-power laser components. |
| 9 | Precision CNC Machined Eyepiece Components for Binoculars Polymethyl methacrylate (PMMA) lenses and barrels with anti-reflective coating, providing 120° field of view. | CNC eyepiece parts, binocular optical components, wide-field vision parts. |
| 10 | CNC Machined Optical Alignment Jigs for Assembly, Aluminum alloy jigs with ±0.005mm positioning pins, reducing assembly time by 30% for lens manufacturers. | CNC optical jigs, lens assembly tools, precision alignment components. |
| 11 | Ultra-Precision CNC Machined Fiber Optic Connectors for Data Transmission ,aluminum alloy ferrules with ±0.005mm concentricity, ensuring 99.9% light transmission efficiency. | CNC fiber optic connectors, high-speed data transmission parts, ceramic optical components. |
| 12 | CNC Machined Optical Bench Components for Research Labs, Stainless steel rails and mounts with M6 threaded holes, compatible with standard optical components, ideal for physics labs | CNC optical bench parts, research lab optics, precision lab components. |
| 13 | Custom CNC Machined Light Guides for Medical Devices ,Polystyrene light guides with CNC-machined diffusers, delivering uniform illumination for endoscopes. | CNC light guides, medical optical parts, custom endoscope components. |
| 14 | Precision CNC Machined Optical Enclosures for Harsh Environments, IP67-rated aluminum enclosures with O-ring seals, protecting lenses from dust and water, perfect for outdoor cameras. | CNC optical enclosures, rugged camera parts, IP67 optical components. |
| 15 | CNC Machined Optical Calibration Targets for Metrology, Black-anodized aluminum targets with 0.01mm precision features, used for 3D scanning and machine vision calibration. | CNC calibration targets, optical metrology parts, precision measurement components. |
| 16 | High-Precision CNC Machined Lens Hoods for Glare Reduction ,ABS plastic hoods with CNC-machined vent slots, reducing lens flare by 40% in bright conditions. | CNC lens hoods, glare reduction optical parts, custom lens accessories. |
| 17 | CNC Machined Optical Mounting Plates for Industrial Cameras, Aluminum plates with multiple mounting patterns (C-mount, CS-mount), compatible with 90% of industrial cameras. | CNC mounting plates, industrial camera parts, multi-pattern optical components. |
| 18 | Custom CNC Machined Spectrometer Components for Chemical Analysis ,Aluminum alloy gratings and slits with ±0.005mm groove spacing, enabling 0.1nm wavelength resolution. | CNC spectrometer parts, chemical analysis optics, high-resolution spectral components. |
| 19 | Precision CNC Machined Optical Windows for Underwater Cameras,Sapphire glass windows with CNC-machined aluminum frames, pressure-resistant to 1000m depth. | CNC optical windows, underwater camera parts, sapphire glass components. |
| 20 | CNC Machined Optical Track Components for Automated Inspection, Linear rails and carriages with ±0.01mm straightness, enabling 0.02mm positioning accuracy for optical inspection systems. | CNC optical tracks, automated inspection parts, precision motion components. |
